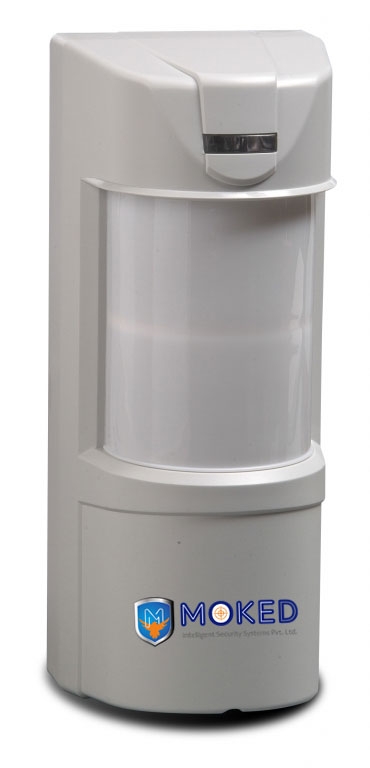

DOUBLE QUAD PIR AND MW OUTDOOR SENSOR

• Up to 55 kg (110 Lbs) Pet immunity
• Dual Quad Element Pyro sensor
• K-Band (24.125GHz) microwave
• Form C (NC, NO, Common)
• IP55 rated
• Coverage detection pattern of 90⁰?adjustable within 180
  ⁰
• Heavy duty polycarbonate housing
• Sealed electronics and optics
• Automatic temperature compensation
• User selectable sensitivity levels
• Superior filtering against sun and white light
• Operation temperature: -35⁰C to +55⁰C (-31⁰F + 131⁰F)
• Operation Voltage: 9.6 to 16 Vdc
• Over-voltage protection: 1kV per IEC61000-4-5 and EN-50130-4
• Relay contacts rate: 28Vdc, 0.1A
• Dim: 200 x 86 x 80 mm (7.9” x 3.4” x 3.2”)
