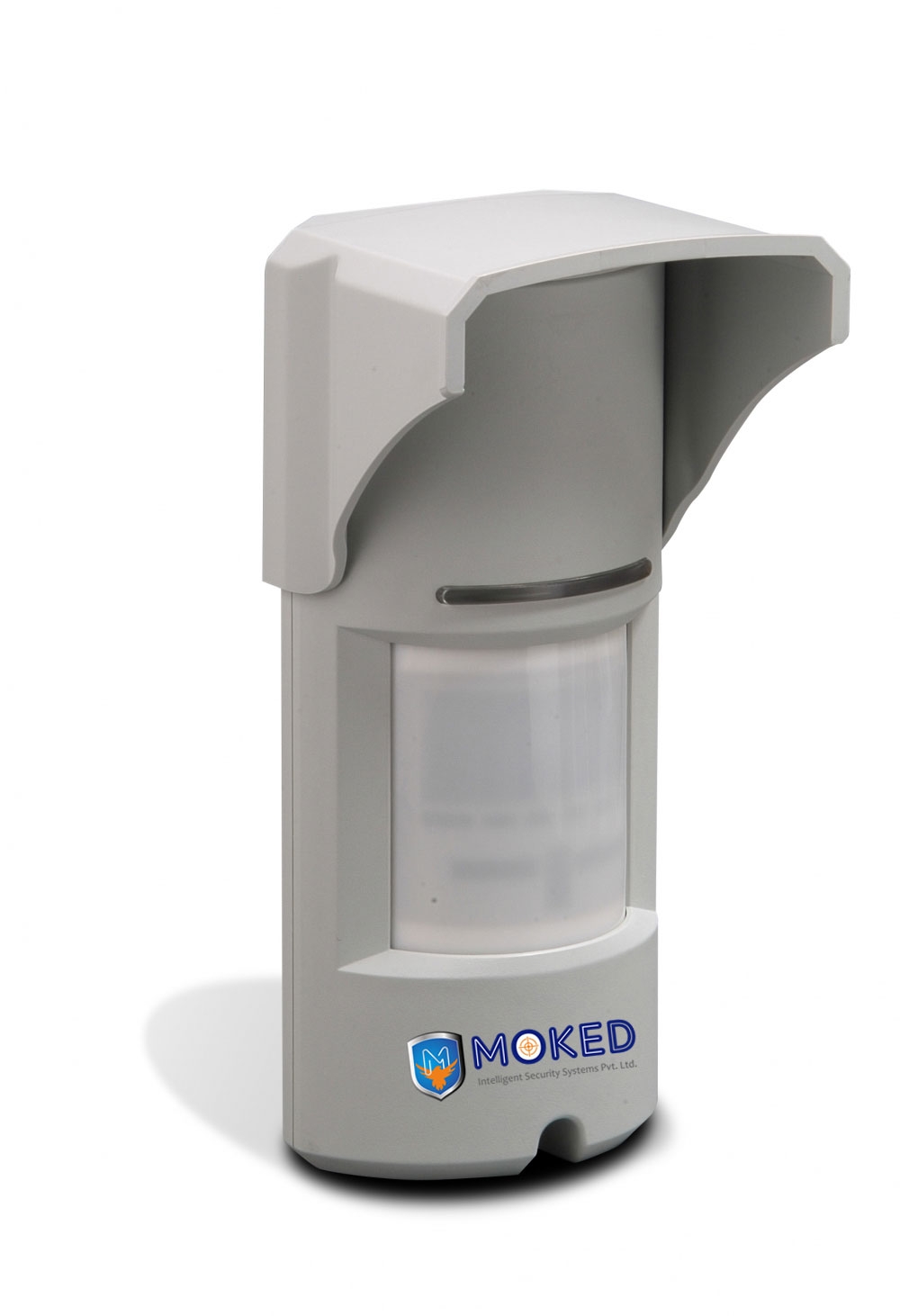

QUAD PIR AND MICROWAVE OUTDOOR SENSOR

• Up to 55kg (110Lbs) Pet immunity
• Quad Element Pyro sensor
• X-Band 10.525GHz/10.687GHz K-Band 24.125GHz microwave
• Form C (NC, NO, Common)
• IP55 rated
• 15m (49ft) WA detection range at 2.4m (8.7ft) installation height
• Operation temperature: -35⁰ to +55⁰C (-31⁰F + 131⁰F)
• Operation Voltage: 9.6 to 16 Vdc
• Over-voltage protection: 1kV per IEC61000-4-5 and EN-50130-4
• Relay contacts rate: 28Vdc, 0.1A
• EDS-2000 AM with Anti-Masking
• Dim: 175 x 70 x 45 mm (6.9” x 2.8” x 1.8”)
