OUTDOOR DIGITAL DOUBLE & DUAL PIR DETECTOR WITH ANTI-MASKING

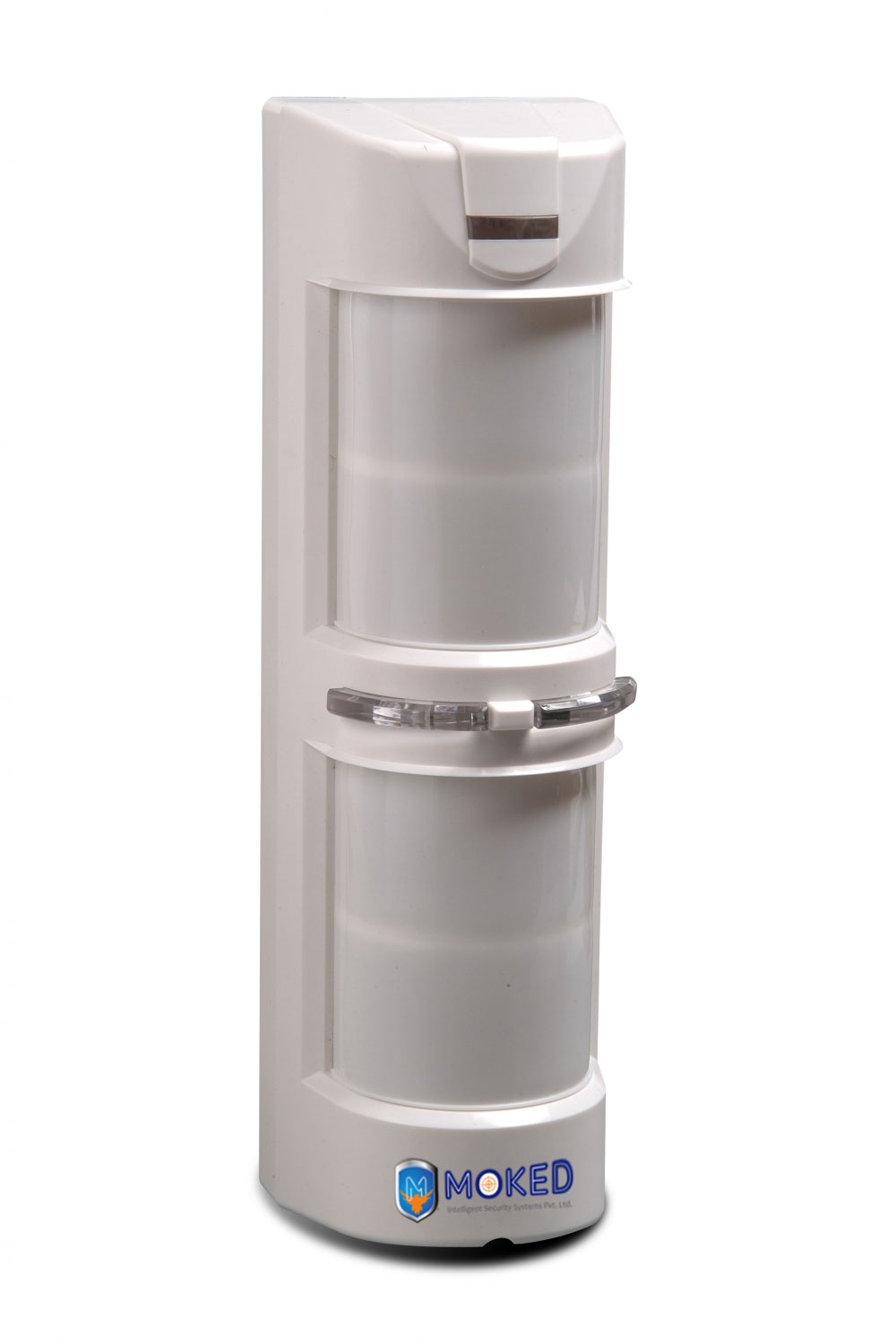

MOKED-4000 Quattro features a combination of two Double & Dual PIR detection units and an advanced digital signal processing.

MOKED-4000 Quattro easily fits into any outdoor installation location with its detection units adjustable to cover separate areas up to 180⁰.

It offers outstanding catch performance and freedom from false alarms by overcoming the disturbances caused by an unstable outdoor environment.

• Double & Dual PIR detection units
• Advanced digital processing and optical anti-masking for accurate intruder detection
• Useful for balconies, backyards, parking areas, garages, high security outdoor surroundings, warehouses and many more.
• Water, snow, rain, dust , wind and insect resistant
• Two separate 90⁰ coverage patterns with individual relay outputs for alarm verification
• Heavy duty polycarbonate housing and sealed electronics
• Automatic temperature compensation
• User selectable sensitivity levels
• Adjustable time relay output
• Anti-Masking
• Superior filtering against sun and white light
• EN50131 Grade 3 compliant
• IP55 rated
• Operation temperature: -35⁰C to +55⁰C (-31⁰F + 131⁰F)
• Operation Voltage: 9.6 to 16 Vdc
• Over-voltage protection: 1kV per IEC61000-4-5 and EN-50130-4
• Relay contacts rate: 28Vdc, 0.1A
• Dim: 270 x 80 x 92 mm (10.6” x 3.1” x 3.6”)
